Personalized Electrolaryngeal Voice Conversion with a Single Pre-operative Utterance

Abstact

Electrolaryngeal voice conversion (ELVC) enhances the mechanical speech of laryngectomees to improve naturalness and intelligibility. While personalized ELVC typically requires extensive pre-operative recordings for supervised training, this paper investigates a one-shot scenario where only one natural utterance is available for timbre preservation. We evaluate two strategies using zero-shot VC models: (1) a cascaded approach, performing ELVC followed by secondary conversion to the target timbre; and (2) a pseudo-target strategy, using a zero-shot model to generate synthetic training data for a supervised ELVC model. Results indicate that the cascaded approach outperforms the pseudo-target strategy, remarkably improving speaker similarity and quality with minimal impact on intelligibility. We also demonstrate that direct application of zero-shot models to ELVC fails due to domain mismatch, confirming the necessity of our proposed framework for one-shot personalized voice restoration.

VC Approaches

• LLE¹: Locally Linear Embedding with the following features and their usage:
  • Weight estimation and reconstruction:
    1. For Cascade (Waveform) and Pseudo-Target Strategy: features extracted from the 6th layer of WavLM Large
    2. For Cascade (Feature) and Refined Cascade (Feature): features extracted from either WavLM-Large, HuBERT, or Whisper-small
  • Neighbor search and alignment: Chinese-HuBERT Large
• Seed-VC²: : Seed-VC v1, a zero-shot diffusion-based VC model
• FreeVC³: A High-quality, text-free, one-shot VC model
• Vevo⁴: A zero-shot VC framework that decouples style, timbre, and linguistic content (we used only the flow-matching transformer component)
• ELXX/BYELXX: EL speaker id
• NLXX/BNLXX: NL speakers id (Male: NL01, NL08, BNL02; Female: NL06)

Illustration of the implemented one-shot personalized ELVC frameworks and refinement

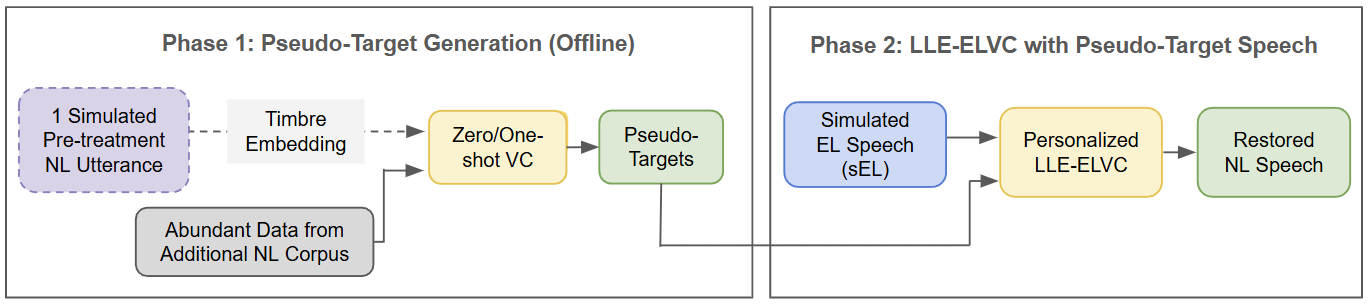

The Pseudo-target Strategy

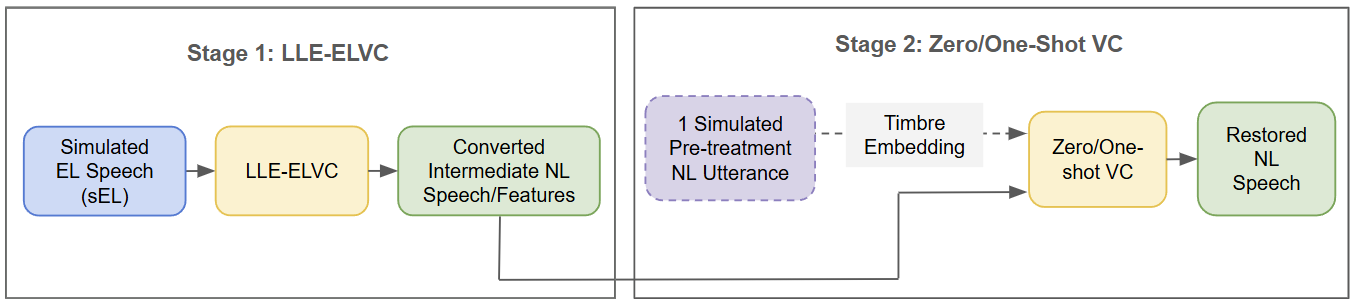

The Cascade Approach

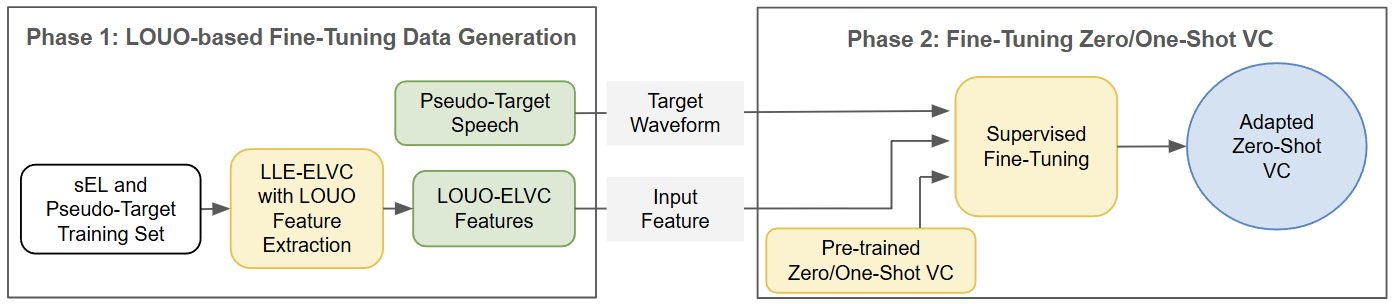

Supervised Refinement of the Feature-level Cascade Approach

Objective evaluation

Fow Quality:

• SpeechBERTScore: objective metric for measuring semantic fidelity
• UTMOS: objective metric for predicted perceptual quality

For speech intelligibility:

• SER: syllable error rate of a given speech calculated using a self-trained syllable recognition system

For speaker similarity:

• Similarity: cosine similarity between the converted and reference utterances, calculated with a resemblyzer in the Amphion toolkit

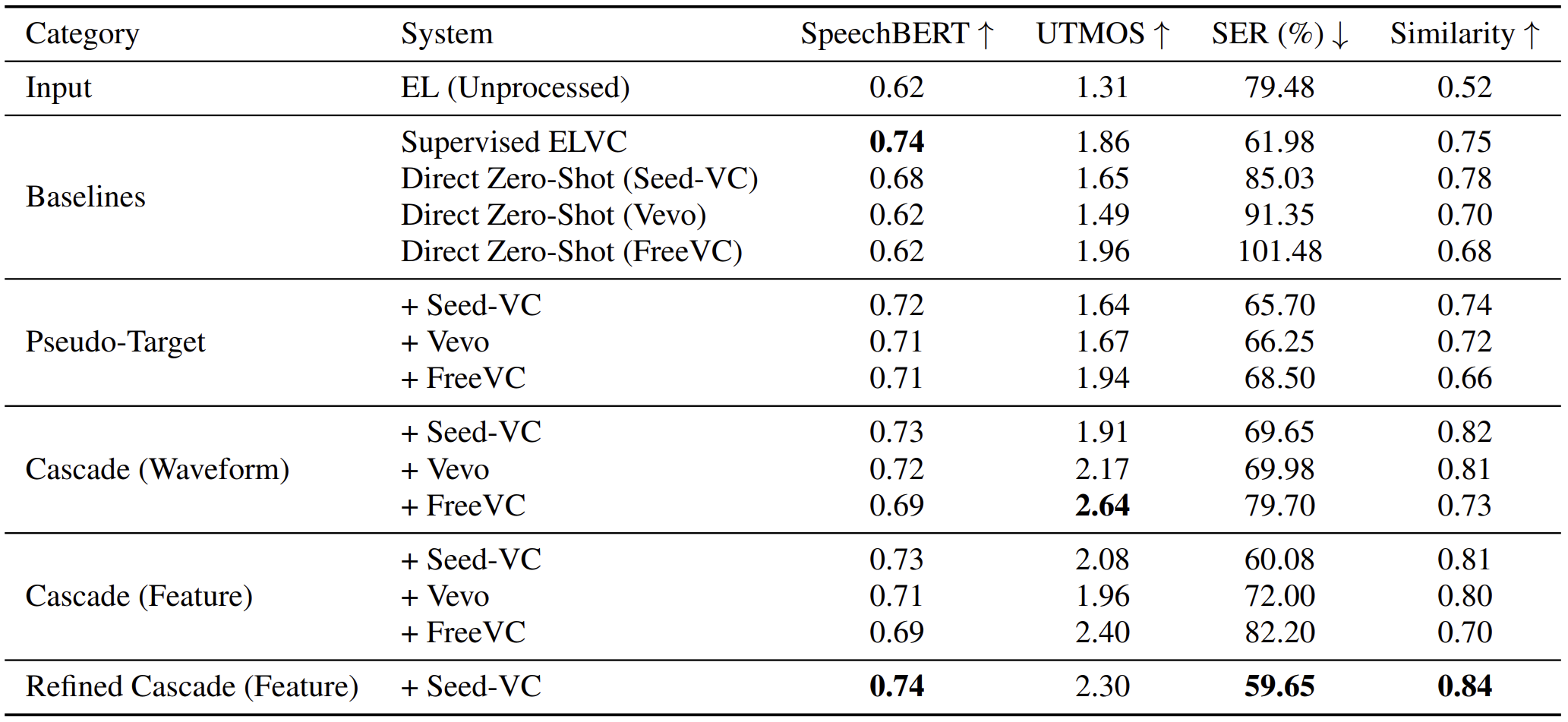

Table 1: Average performance across four speaker pairs. SER indicates Syllable Error Rate (%). Lower SER is better; higher values are better for other metrics.

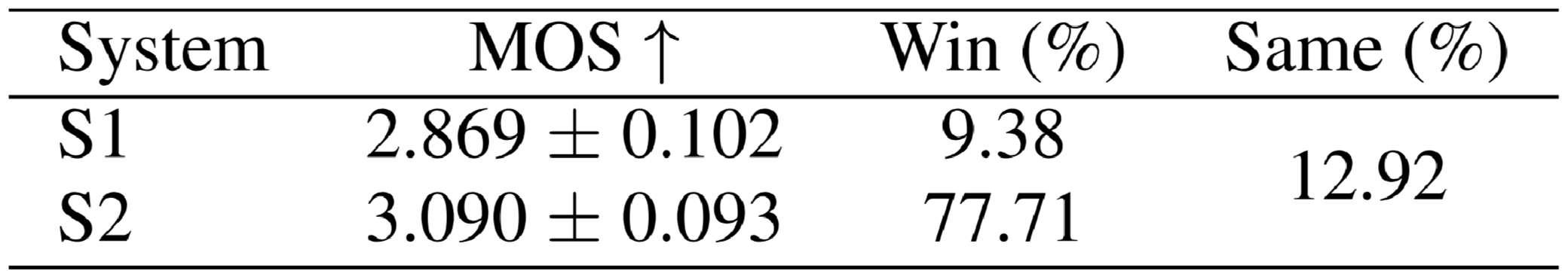

Table 2: Subjective evaluation results for S1 vs S2. MOS scores are reported as 95% confidence interval. Win/Same rate show the percentages for listener choices in the ABX test.

Audio samples

Category:

• source speech: speech from EL01, BYEL02, EL08, EL06
• target speech: speech from NL01, BNL02, NL08, NL06
• For the tables below, the rows are the systems implemented, and the columns are the target speakers used for conversion.

sample 1

• transcription: 他捐了很多衣物給災區 (ta juan le hen duo yi wu gei zai qu)

Category	System	NL01	BNL02	NL08	NL06
Input	EL (Unprocessed)
Input	Target speech
Baselines	Supervised ELVC
Baselines	Direct Zero-Shot (Seed-VC)
Baselines	Direct Zero-Shot (Vevo)
Baselines	Direct Zero-Shot (FreeVC)
Pseudo-Target	+ Seed-VC
Pseudo-Target	+ Vevo
Pseudo-Target	+ FreeVC
Cascade (Waveform)	+ Seed-VC
Cascade (Waveform)	+ Vevo
Cascade (Waveform)	+ FreeVC
Cascade (Feature)	+ Seed-VC
Cascade (Feature)	+ Vevo
Cascade (Feature)	+ FreeVC
Refined Cascade (Feature)	+ Seed-VC

sample 2

• transcription: 電視報導那裡發生地震 (dian shi bao dao na li fa sheng di zhen)

Category	System	NL01	BNL02	NL08	NL06
Input	EL (Unprocessed)
Input	Target speech
Baselines	Supervised ELVC
Baselines	Direct Zero-Shot (Seed-VC)
Baselines	Direct Zero-Shot (Vevo)
Baselines	Direct Zero-Shot (FreeVC)
Pseudo-Target	+ Seed-VC
Pseudo-Target	+ Vevo
Pseudo-Target	+ FreeVC
Cascade (Waveform)	+ Seed-VC
Cascade (Waveform)	+ Vevo
Cascade (Waveform)	+ FreeVC
Cascade (Feature)	+ Seed-VC
Cascade (Feature)	+ Vevo
Cascade (Feature)	+ FreeVC
Refined Cascade (Feature)	+ Seed-VC

Reference

1. Li, F.R., Hwang, H.T., Yen, M.C., Lo, M.T., Tsao, Y., Wang, H.M.: Improving exemplar-based electrolaryngeal speech voice conversion via robust content representations. In: Proc. APSIPA (2025) ↩

2. Seed-VC GitHub: https://github.com/Plachtaa/seed-vc ↩

3. FreeVC GitHub: https://github.com/OlaWod/FreeVC ↩

4. Vevo GitHub: https://github.com/open-mmlab/Amphion/tree/main/models/vc/vevo ↩
